Enail Pinouts, Connections and Compatibility

coil connection enail xlr

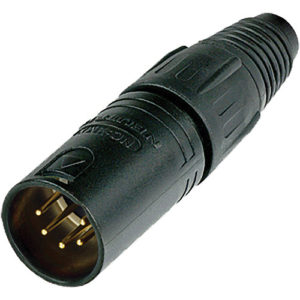

XLR Quick Disconnect Plug.


Although many enail manufacturers use this connection not all share the same wiring. It's best to try and purchase the coil from the manufacturer of the enail controller. If that's not possible try and get the wiring diagram of their plug. If a coil is plugged into the controller with the incorrect wiring the coil will short out and be destroyed. Changing the pins around within the plug can be easily done with anyone handy with a soldering iron.


Compatible XLR Quick Disconnect

Brands we have found to be compatible with our coils

  • Auber
  • Gimido
  • Dnail
  • Disorderly Conduction/PeliNail
  • NV/CH Rev 2
  • Galaxy Enails

This is the pinout for our controller and matching compatible brands (wire color may vary)

1 - Power (Blue)
2 - Power (Blue)
3 - Thermocoupler (red)
4 - Thermocoupler (black)
5 - Ground (Yellow)


Non-Compatible XLR Quick Disconnect

Brands we have found NOT to be compatible with our coils

  • HighFive
  • Menovo

The pinout below is the one found in these non-compatible devices

1 - Thermocoupler
2 - Thermocoupler
3 - ground
4 - Power
5 - Power



XLR Threaded NewVape Legacy Coil Connection

Around 2010 when enails first came out and prior to there being any perceived standards. NewVape selected the older generation xlr threaded connection simply because the pins were larger. Since that decision we've sold thousands of controllers and coils that are still in service. NewVape will remain faithful to our customers by continuing to sell, stock, and support the NewVape Legacy threaded XLR connection. NewVape will continue to stock, and sell 8 coils/heaters that utilize the xlr threaded connection.

Flat, 16mm, 20mm, and cartridge heaters all available in 110 or 220v.


NewVape Legacy Coils with 5 pin Threaded XLR Connection

1 - ground (yellow)
2 - Thermocoupler (Red)
3 - Thermocoupler (Black)
4 - Power (Blue)
5 - Power (Blue)


*This list is a work in progress.  If you have any additions or modifications please email support@cannabishardware.com


The following list was put together but a kind soul on the Divine Tribe Discord. Please reach out if you have any questions (CH cannot guarantee the compatibility of all these items as this list is Community generated)

Compatible coils:
-710 coils
-Cannabis Hardware
-Divine Tribe/SZ Crossing coils
;Dabbing Specialist/Warehouse custom made in USA coils

Compatible Controllers:
-Auber (RDK-200 and RDK-300)
-Cannabis Hardware

-Disorderly conduction Peli nails
-Dab Ninja
-Divine Tribe
-Max Vapors
-Hedi Nail
-RCC Tools controllers
-Pulsar Elite Series Mini
-Shatter box
-Dabbing Specialist custom enail controller * custom made in USA

Non-Compatible Controllers:
Mini Nail
710 Life
Puffing Bird
